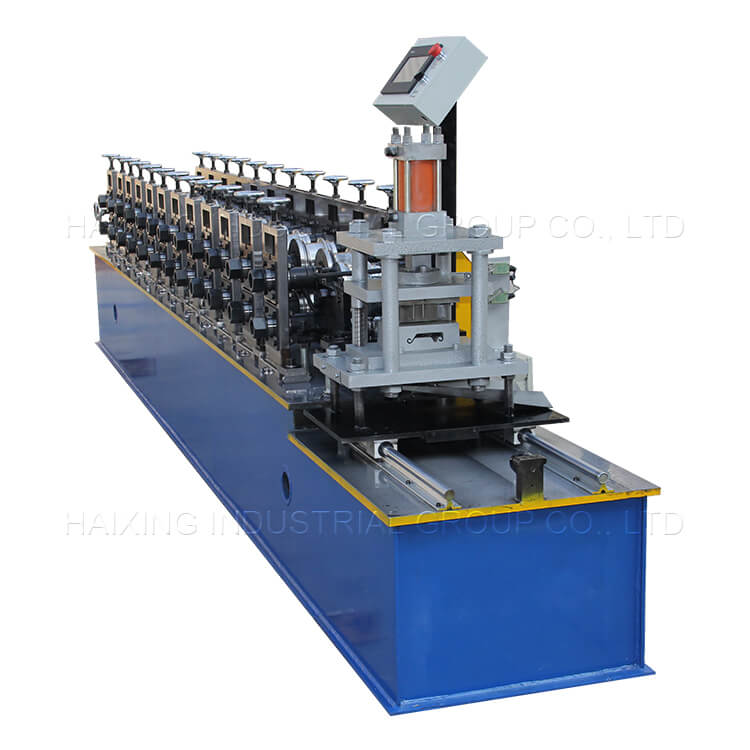

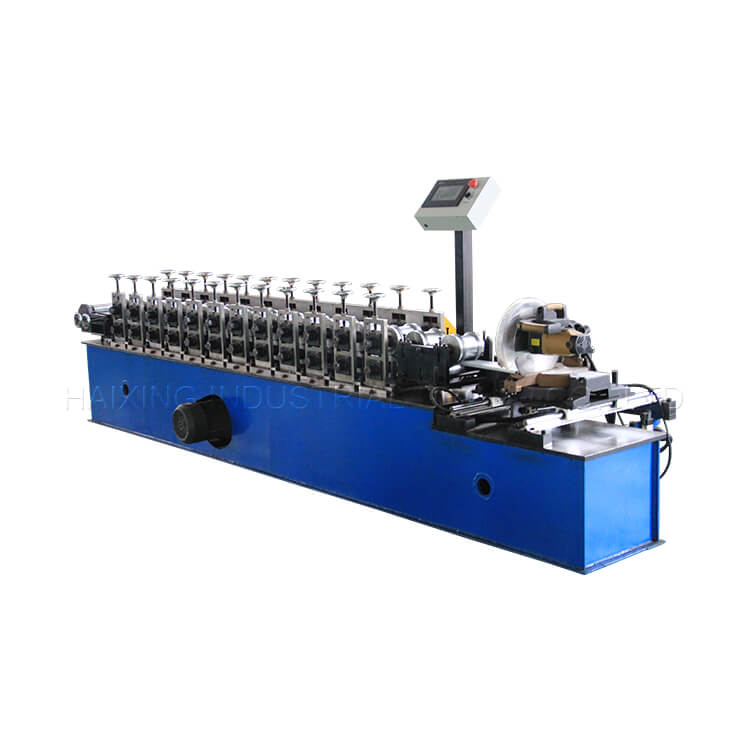

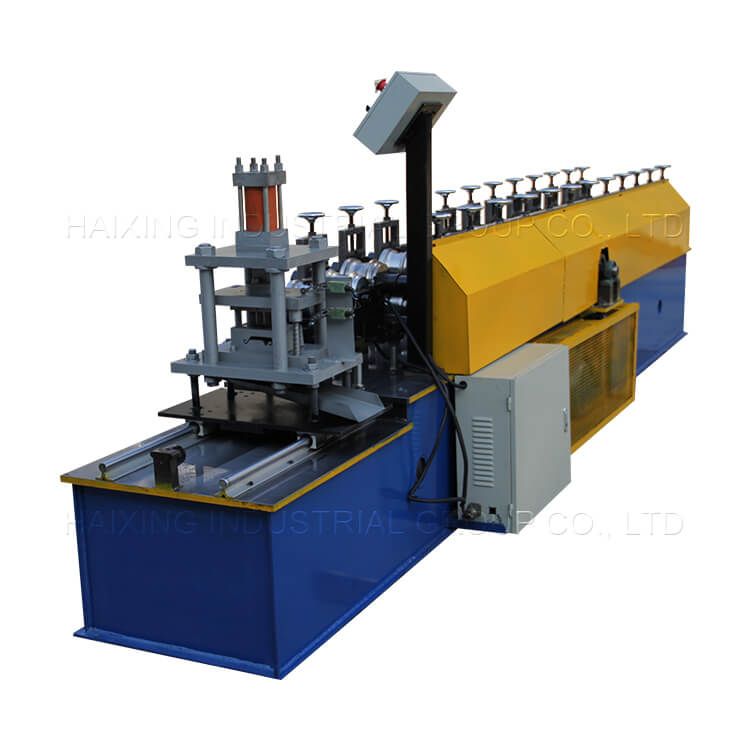

Metal shutter door roll forming machine main Parameters
|
1
|
Suitable to process
|
Color alu-zinc steel strips
|
|
2
|
Roller
|
12Rows plus leveling device
|
|
3
|
Dimensions
|
5.4*1*1.5m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|
Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.6-1.0mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ50mm
|
|
10
|
Weight
|
About 2600kgs
|
|
11
|
Main structure of the machine
|
Square steel frame
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Gear driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Metal shutter door roll forming machine export standard packages details
1.Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.This producing line is maintained free of charge for 24 months. When the machine is used in China, we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug. Buyers should take all the fees for technicians travelling abroad.
3.All the parts in the roll forming machine is free to maintain all the life, if in 24 months our company bear the cost for exchanged the broken part like the new parts cost and express cost, if more than 24 month, we also free to maintain the broken parts, but for send the new parts, the buyer need bear the express cost.
4.When ship the roll forming machine, We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
