Product Description

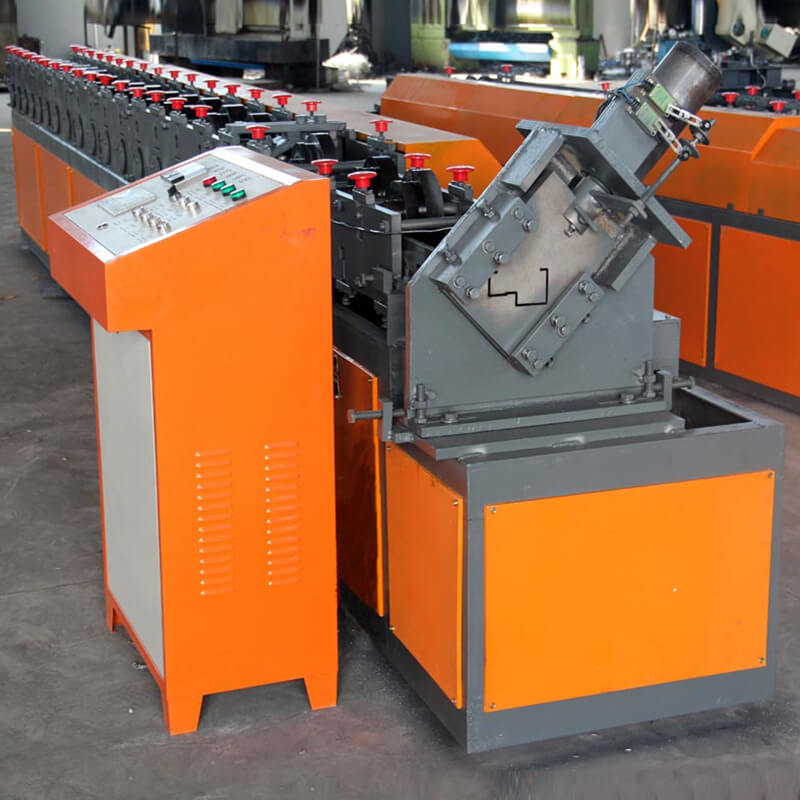

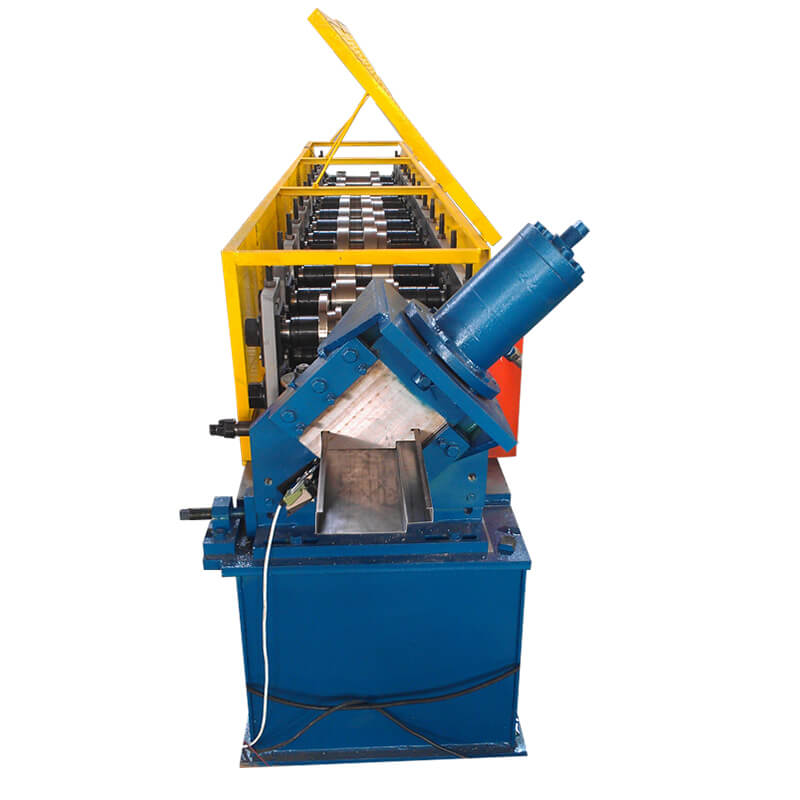

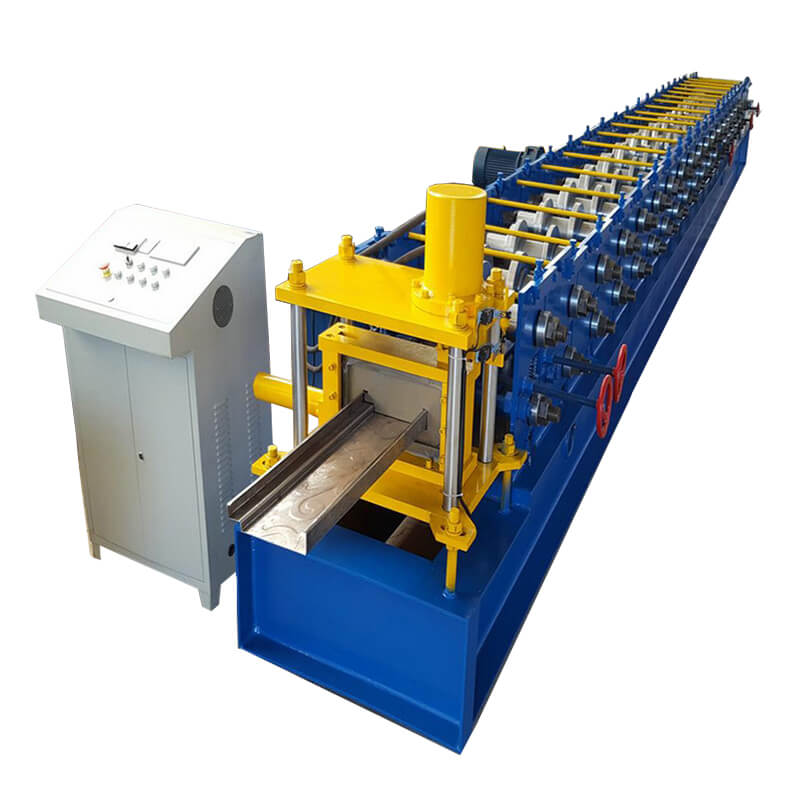

Steel door frame roll forming machine main Parameters
| Description | Offered specification |
| Roll Forming Machine | Double door frame |
| Material width | 3 sizes. Waiting for buyer exactly profile |
| How to adjust size | Option : by PLC (It can be adjust by PLC and also in hand wheel) One side fixed and the other is adjustable by manual or PLC |
| Base frame | base frame 30 mm thick steel plate process the surface on CNC planer to keep it leveling and drill boltes and key slot by CNC |
| Rolling Speed | 12-15m/min(not include cutting time) |
| Rolling Thickness | 1.2-2.0mm |
| Material | GI or metal |
| Control System | PLC (Panasonic) as list in the note |
| UnCoiler | 3 Ton manual decoiler |
| Leveling | Up in 3 roller, down in 4 roller |
| Roller Stations | About 20 stations |
| Roller Material | Gcr15, coated with chrome HRC58-62 degree |
| Shaft Material and DIA | ¢70mm, material is 45# forge steel |
| Maim Motor Power | 11kw brake motor |
| Hydraulic Station Power | 5.5kw |
| Hydraulic Pressure | 20Mpa |
| Capacity of tonnage for punching | 22Tons |
| Hydraulic pump brand | Lichao |
| Bearing brand | Harbin |
| Other brand list | PLC: Panasonic Touch screen: MCGS Inverter: Yaskawa Main components for low pressure electricity: Schneider Encoder: Omron |
| Punching | 3 units pre-punching and one unit cutting&punching include including 6 set 45 degree angle moulds The punishing tonnage to make the hole and cutting to make the 45 degree |
| Cutting | Hydraulic post-cutting for cut end product |
| Extra cutter | One more cutter for each profile |
| Material Of Cutting | Cr12Mov quenching 58-62ºC |
| Electric Source | 380V, 60HZ,3 phase |
| Way Of Drive | 1.2 inch single chain |
| Color Of The Machine | Yellow and blue |
| Machine Type | Iron Cast |
| Emergency switch | In main machine and control panel all have emergency switch for forbid any urgently accident |
| Protect cover | Complete mobile safty cover from roll forming to the cutter |
| Size of the machine | L*W*H 12m*1.2m*1.2m |
| Container Need | 1 x40 feet (base on final) |
The advantages of roll forming machine
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
