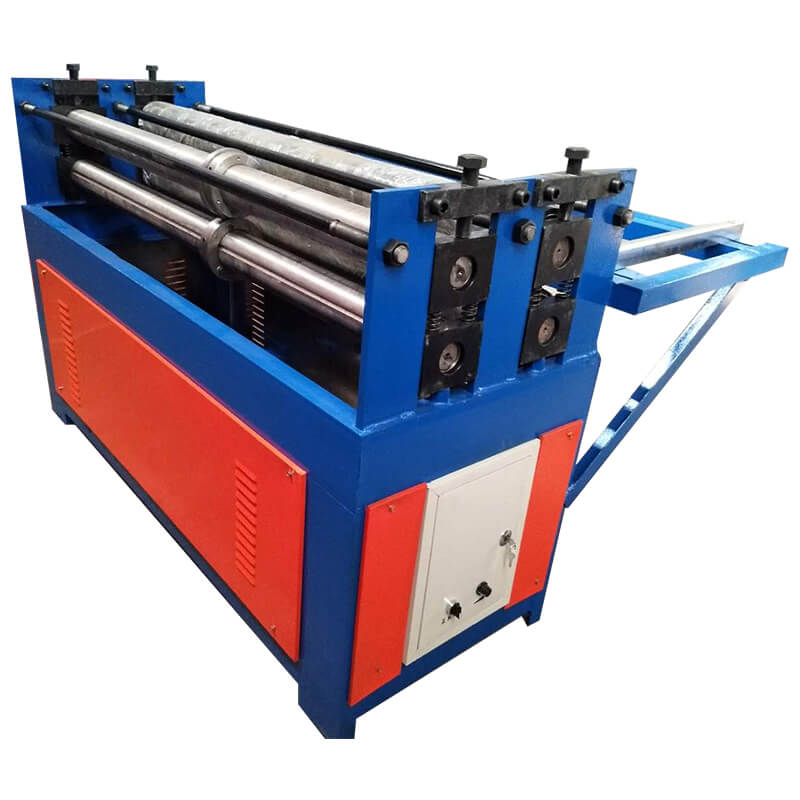

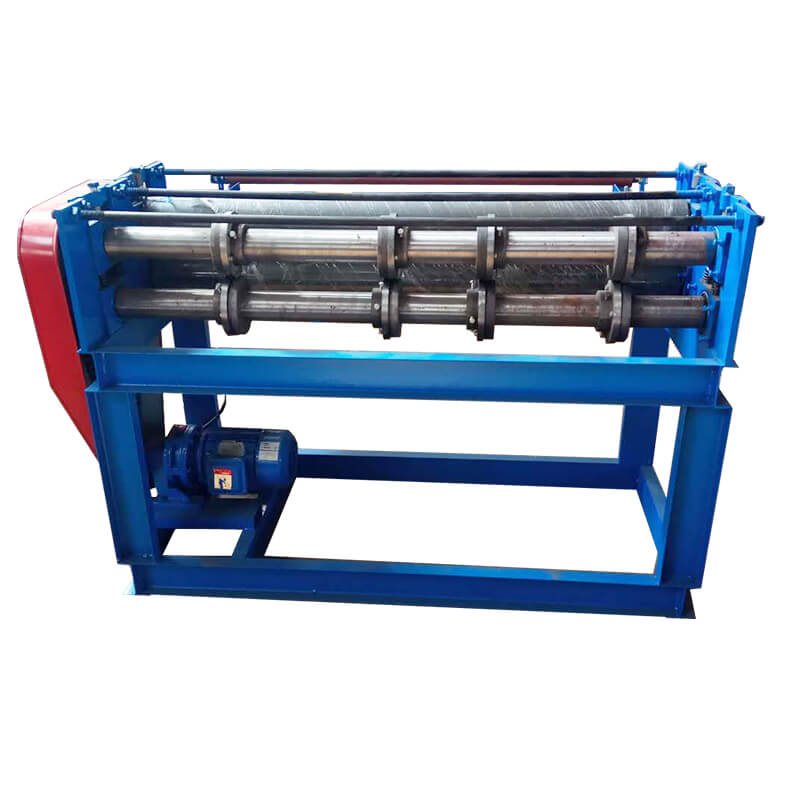

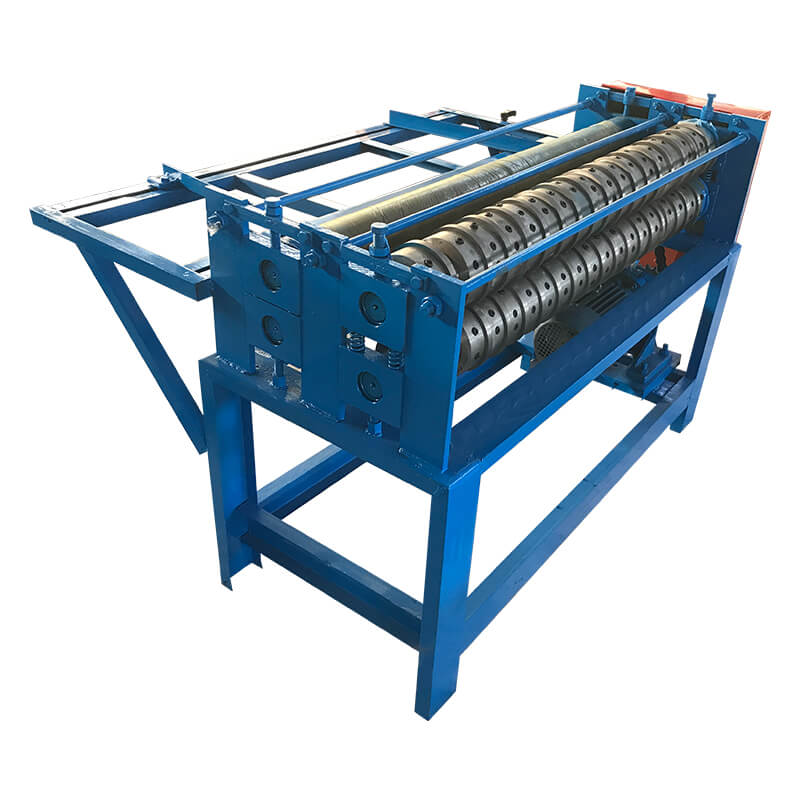

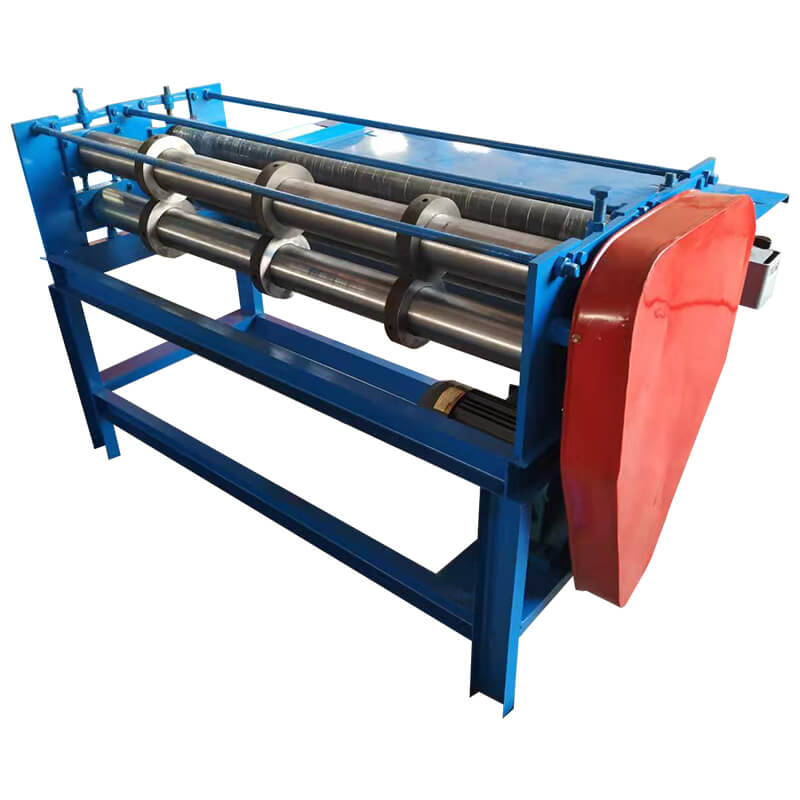

aluminium coil slitting machine
Aluminium coil slitting machine is used to cut wide width materials to many narrow width products.
Supply Ability:
200 Sets per Month
Port:
Tianjin Port, Qing dao port, Shanghai port, Yiwu port
Lead Time :
|
Quantity(Sets) |
1 - 3 |
4 - 5 |
6 - 10 |
>10 |
|
Est. Time(days) |
25 |
30 |
40 |
To be negotiated |
aluminium coil slitting machine main Parameters
|
Size
|
About 1.5m*1.3m*1.25m
|
|
Weight
|
0.35Tons
|
|
The main motor power
|
0.75-2.2kw or customer's need
|
|
The max machining width
|
1250mm
|
|
The machining steel thickness
|
0.2-1.2mm
|
|
Min slitting width
|
75mm
|
|
Material of the cutting blade
|
Gr12,die steel, heat treatment, finish machining for excircle, surface and inner bore
|
|
Hardness of blade
|
56~62 degree
|
|
Feeding method
|
With 2Φ130mm glue axis feeding
|
|
Material of centre stand
|
140mm channel steel maxum
|
|
Voltage
|
380v 50hz 3Phase or customer's need
|

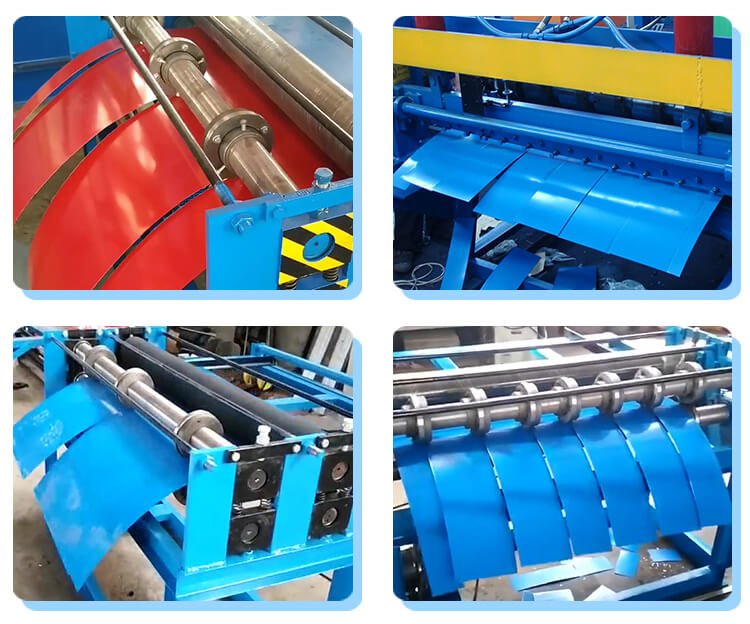

Machine details
Packaging & Delivery:
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
