PRODUCT

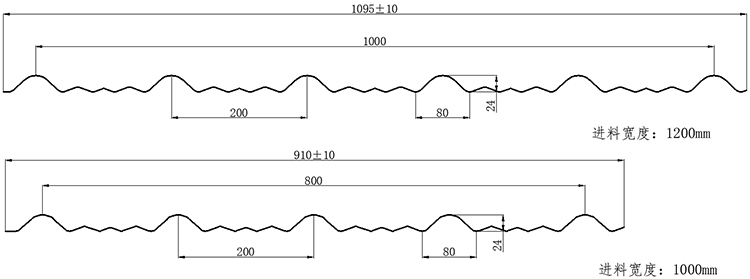

Multi-wave glazed tile profile
Raw material: Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil
Feeding thickness: 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil)

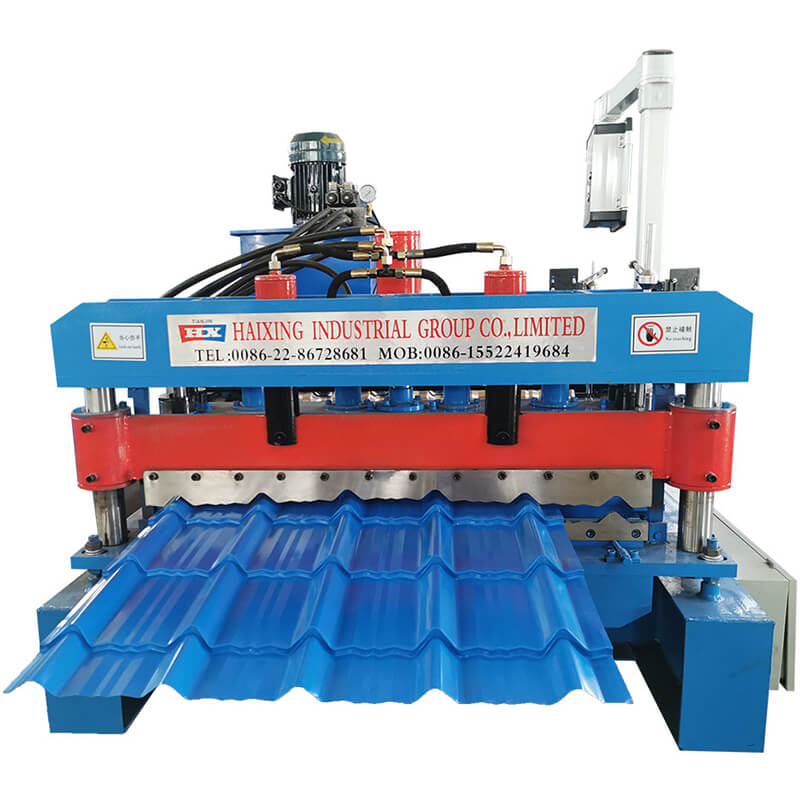

Multi-wave glazed tile roll forming machine main Parameters
|
Main motor power |
5.5KW |
|
Voltage |
380V/50HZ/3 phase, or as requirement |
|
Productivity |
1-3m/min |
|
Mainframe |
350mm H beams, 45# steel |
|
Middle plate |
18mm |
|
Wheel |
45# steel, hardness HRC 58-60℃ |
|
Shaft |
high quality 45# forged steel, with anti-return pad |
|
Shearing knife |
Cr12 / Cr12MOV, heat treatment, HRC 58-60℃ |
|
Decoiler |
Manual decoiler for free |
|
Cutting blade |
Manual cutter |
|
Cutting method |
Hydraulic guide column cutting |
|
Control System |
PLC Control System, 360 degree rotation |
|
PLC Display languages |
Chinese, English, (Spanish or Russian) |

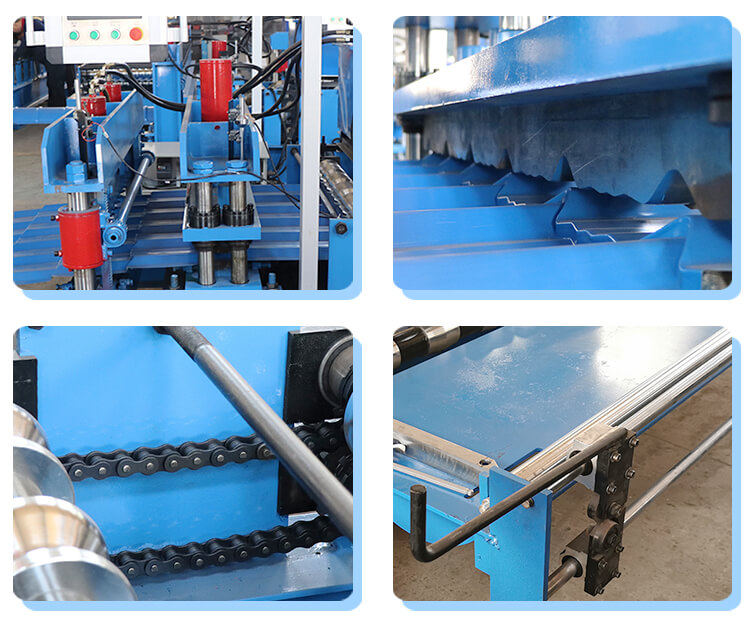

Machine details
Additional Information
Supply Ability:
200 Sets per Month
Packaging & Delivery:
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
Port:
Tianjin Port, Qing dao port, Shanghai port, Yiwu port
Lead Time :
|
Quantity(Sets) |
1 - 3 |
4 - 5 |
6 - 10 |
>10 |
|
Est. Time(days) |
25 |
30 |
40 |
To be negotiated |
