Product Description

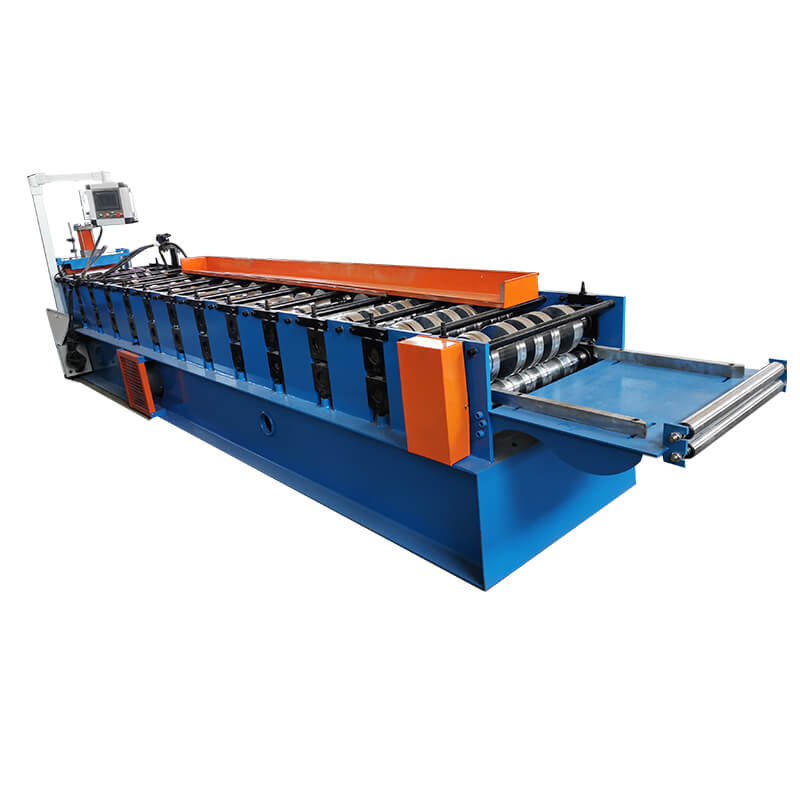

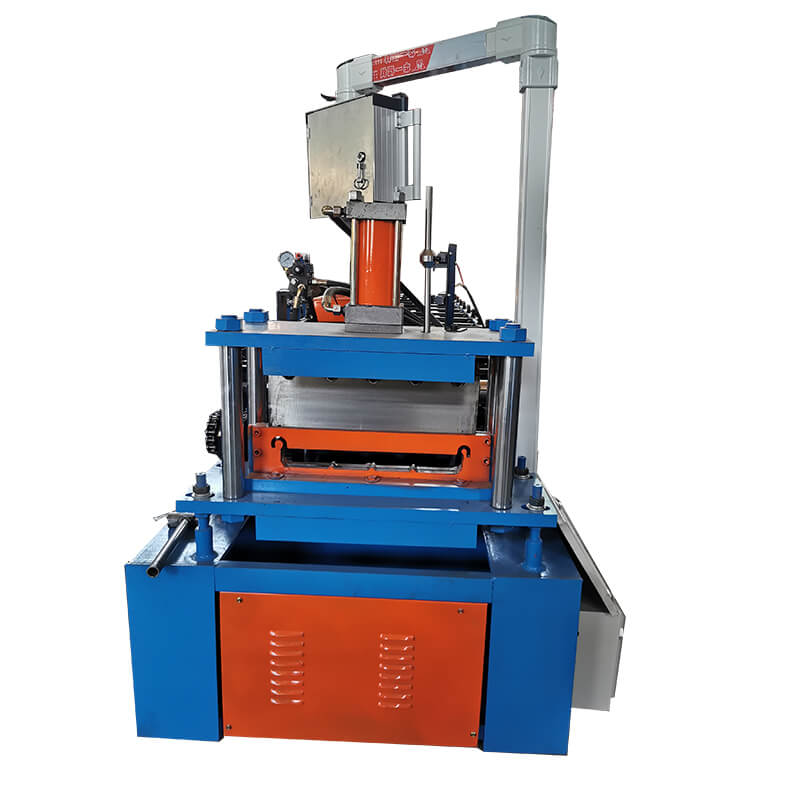

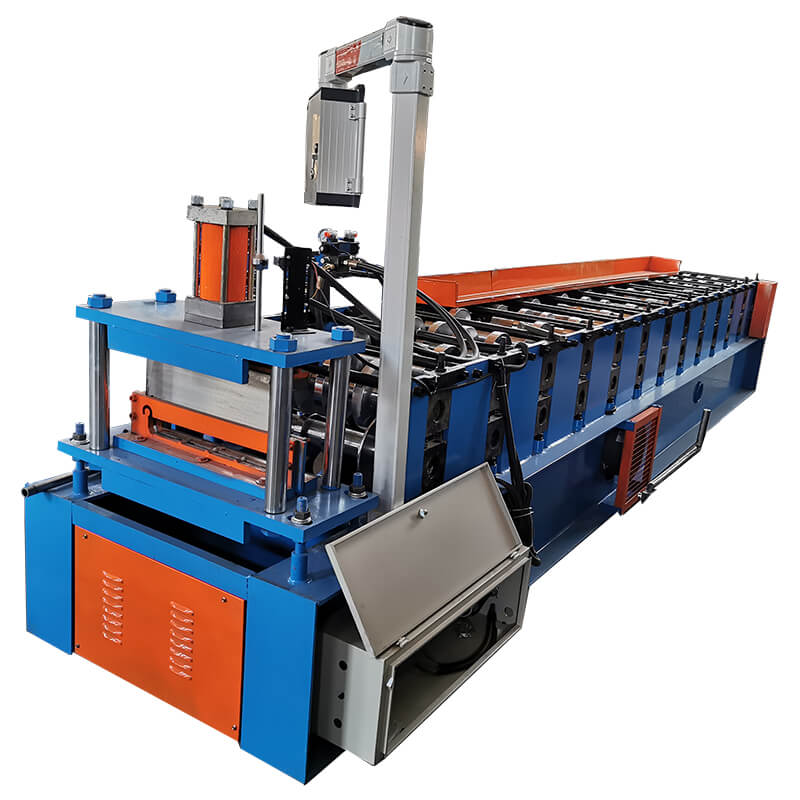

Aluminum Standing Seam Panel Machine parameters
| Suitable to process | Color alu-zinc steel coil/Aluminium Coil |
| Roller | 16Rows |
| Dimensions | 7.0*1.3*1.55m |
| Motor Power | 7.5Kw |
| Pump Station Motor | 5.5Kw, Lichao Brand |
| Thickness of the plate | 0.6-1.2mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| Diameter of the roller | Φ90mm |
| Weight | About 4800kgs |
| Main structure of the machine | 400H beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Chain Wheel and Cycle Chain | 1 Inch |
| Voltage | 380V 50Hz 3phases or as customer's need |
| Control system | PLC control (Delta) |
| Frequency system | Delta |

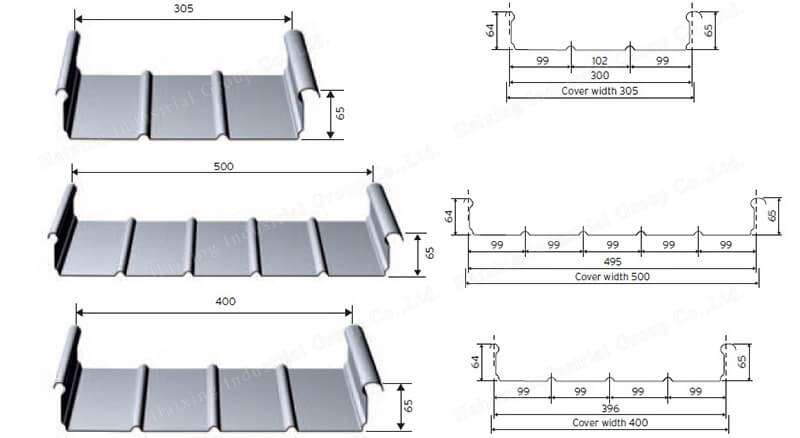

Common aluminum Standing Seam Panel Profile
Aluminum Standing Seam Panel Machine packaging Details
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
