Product Description

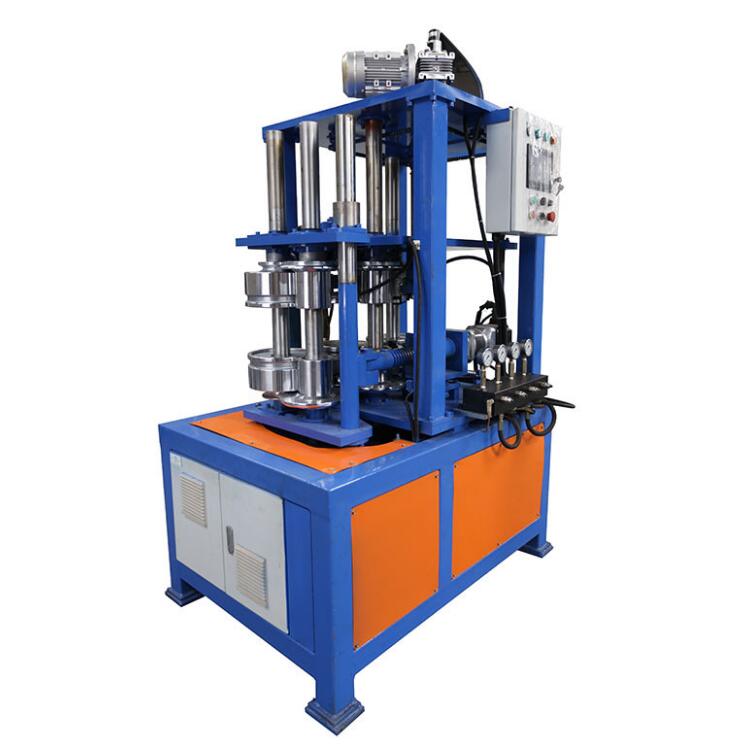

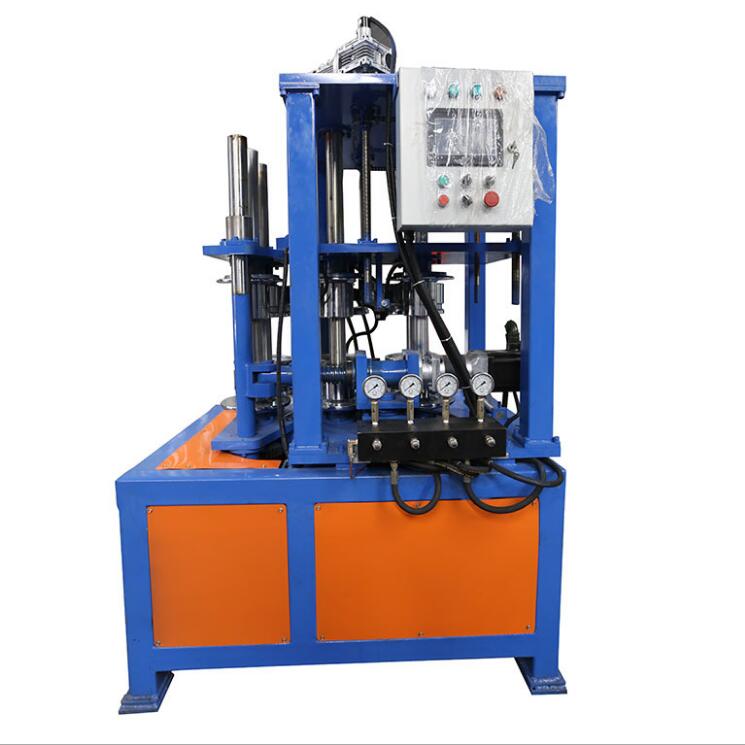

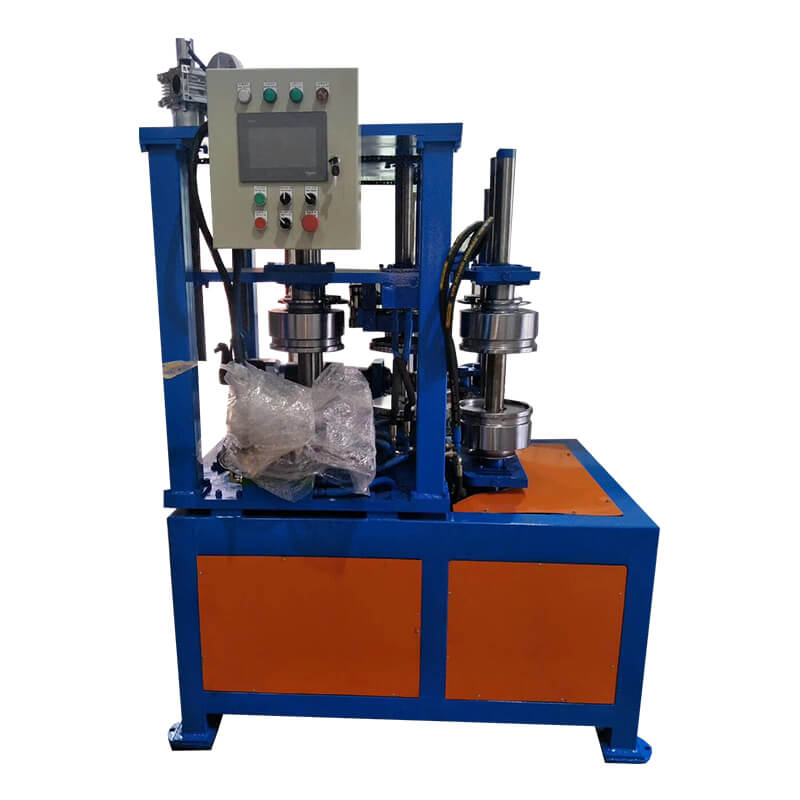

Aluminum Standing Seam Sheet Curving Machine parameters
| Name | Standing Seam Curving Seam Lock Metal Roof Panel Machine |
| Machine size | 1500*850*2000mm |
| Weight | 1.8Tons |
| Voltage | 380V/50HZ/3PH |
| Motor Power | 4Kw |
| Hydraulic Power | 3Kw |
| Curved Thickness for Aluminum | 0.8-1.2mm |
| Curved Thickness for Steel | 0.6-1.0mm |
| Width of straight roofing to curve | 300mm to 600mm |
| Min.Width of Tapered Roofing to Curved | 250mm |
| Max.Width of Tapered Roofing to Curved | 500mm |
| Working Speed | 0-12m/min |
| Forming Steps | 3 steps |
| Min. Curved Radius for Aluminum Roofing | Convex Curved 2M,Concave Curved 8M |
| Min.Curved Radius for Steel Roofing | Convex Curved 5M,Concave Curved 10M |

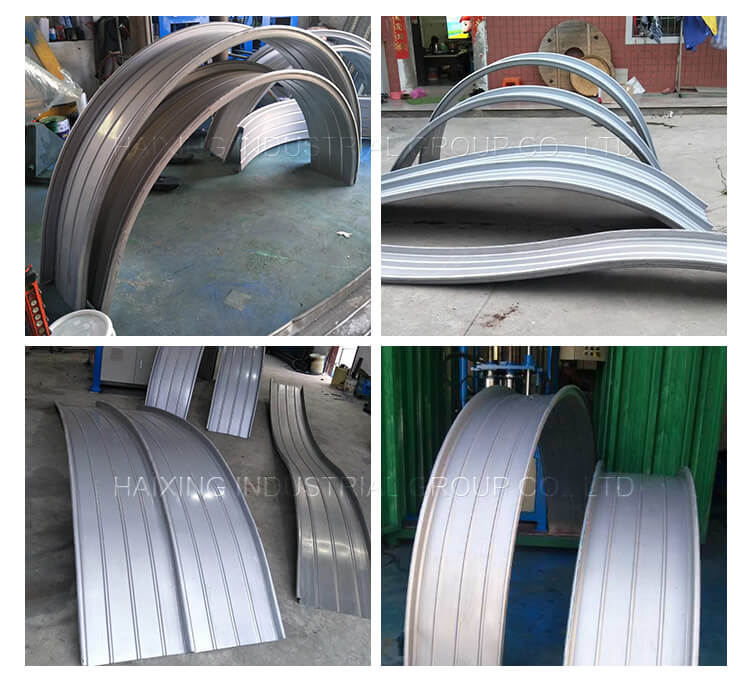

Aluminum Standing Seam Arc Sheet
Aluminum Standing Seam Sheet Curving Machine packaging Details
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
